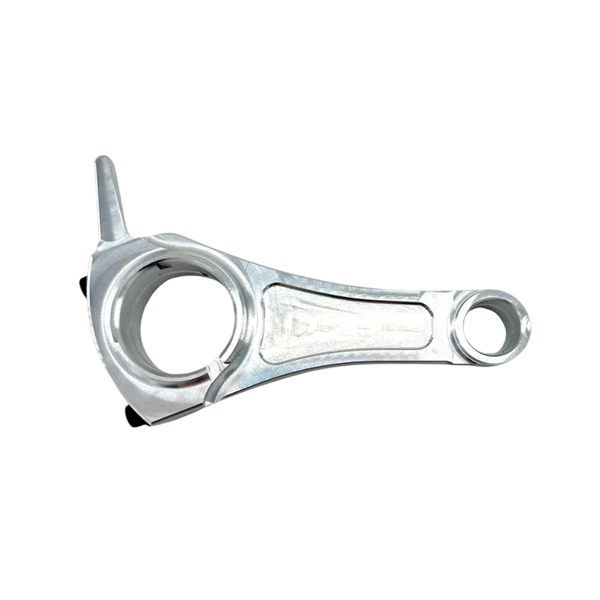

Billet Connecting Rod for GX390
ARC billet +.040" long connecting rod for the Honda GX390. 4.450" center to center for a 1.416" crank pin and a .788" wrist bore. Manufactured from domestic 7075-T651 aluminum and uses 5/16" rod bolts designed and produced by ARP. Also comes with custom made babbit rod bearings. Features ARC's forced oil dipper system. Always check for minimum piston to head clearance of .030"
May require internal clearancing. Includes bearing and ARP rod bolts.
Rod bolt torque: Ā 26 ft/lbs Lubricated
ARC billet +.040" long connecting rod for the Honda GX390. 4.450" center to center for a 1.416" crank pin and a .788" wrist bore. Manufactured from domestic 7075-T651 aluminum and uses 5/16" rod bolts designed and produced by ARP. Also comes with custom made babbit rod bearings. Features ARC's forced oil dipper system. Always check for minimum piston to head clearance of .030"
May require internal clearancing. Includes bearing and ARP rod bolts.
Rod bolt torque: Ā 26 ft/lbs Lubricated
Description
ARC billet +.040" long connecting rod for the Honda GX390. 4.450" center to center for a 1.416" crank pin and a .788" wrist bore. Manufactured from domestic 7075-T651 aluminum and uses 5/16" rod bolts designed and produced by ARP. Also comes with custom made babbit rod bearings. Features ARC's forced oil dipper system. Always check for minimum piston to head clearance of .030"
May require internal clearancing. Includes bearing and ARP rod bolts.
Rod bolt torque: Ā 26 ft/lbs Lubricated
