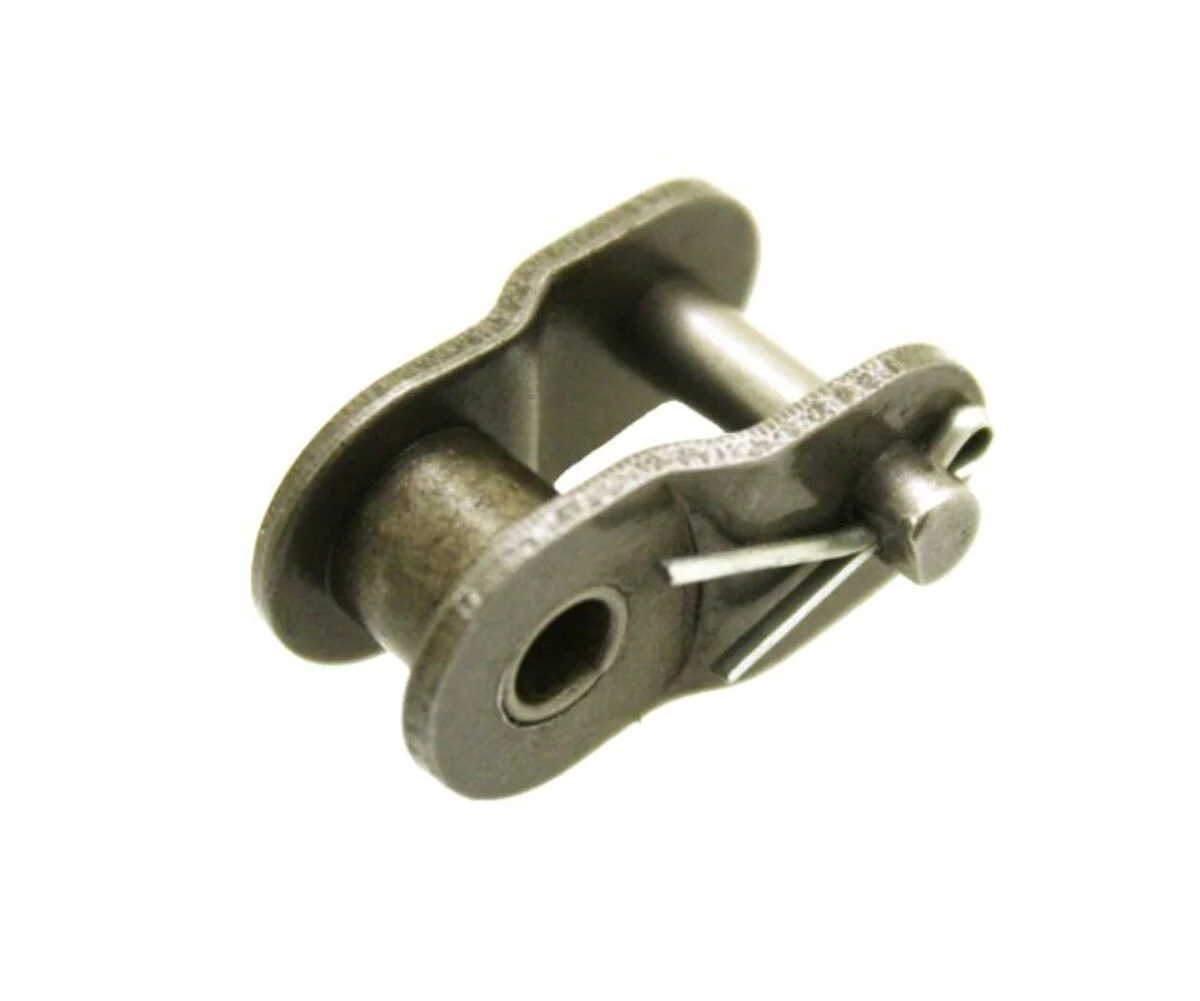

#428H Offset Link
Offset link for chain marked 428H for Pocket bikes, ATVs, dirt bikes, and motorcycles.
- Pitch: 12.70mm
- Roller Diameter: 8.51mm
- Width Between Inner Plates: 7.85mm
- Pin Diameter: 4.45mm
- Pin Length: (L) 18.80mm (LC) 19.9mm
- Inner Plate Depth: 11.80mm
- Plate Thickness: 2.03mm
- Ultimate Tensile Strength: 20.60/4682 kN/LB
- Average Tensile Strength: 23.4 kN
- Weight per meter: 0.79 kg/m
Offset link for chain marked 428H for Pocket bikes, ATVs, dirt bikes, and motorcycles.
- Pitch: 12.70mm
- Roller Diameter: 8.51mm
- Width Between Inner Plates: 7.85mm
- Pin Diameter: 4.45mm
- Pin Length: (L) 18.80mm (LC) 19.9mm
- Inner Plate Depth: 11.80mm
- Plate Thickness: 2.03mm
- Ultimate Tensile Strength: 20.60/4682 kN/LB
- Average Tensile Strength: 23.4 kN
- Weight per meter: 0.79 kg/m
$1.75
Original: $4.99
-65%#428H Offset Link—
$4.99
$1.75Description
Offset link for chain marked 428H for Pocket bikes, ATVs, dirt bikes, and motorcycles.
- Pitch: 12.70mm
- Roller Diameter: 8.51mm
- Width Between Inner Plates: 7.85mm
- Pin Diameter: 4.45mm
- Pin Length: (L) 18.80mm (LC) 19.9mm
- Inner Plate Depth: 11.80mm
- Plate Thickness: 2.03mm
- Ultimate Tensile Strength: 20.60/4682 kN/LB
- Average Tensile Strength: 23.4 kN
- Weight per meter: 0.79 kg/m
